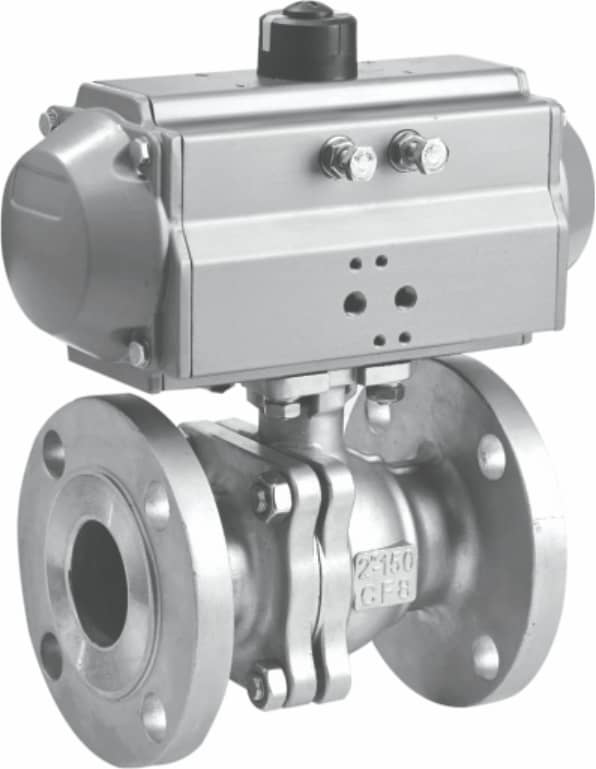

Ball Valve
Ball valves are highly efficient and reliable flow control devices used across a wide range of industries. They operate by rotating a ball with a bore through it within the valve body, allowing for quick and easy control of fluid flow. Known for their tight sealing capabilities, ball valves ensure leak-proof operation even in high-pressure and high-temperature environments. Their robust construction and simple design minimize maintenance requirements and enhance durability.
(API 6D , ASME B 16.34, MS EN ISO 17292)
API 5987, API 6D, BSEN 12266 Part-1 & 2
Carbon Steel, Stainless Steel, Duplex & Super Duplex Stainless Steel, lnconel, CS With SS Weld Overlay Etc
1/2″ to 8″
Full Bore, Reduced Bore
ASME #150 I #300 #600
PTFE, RPTFE, Peek, Devlon & Metal Seated
Flanged, Butt Weld, Screwed, Socket Weld,
Pup End, RTJ & etc..
SS 416, SS 304, SS 316, Monel & 17-4 Ph
Class V & VI
BS EN ISO 17292
1/2″, 3/4 “, 1″, 1.1/2″, 2”
150, 300, 600, 800
⦁ Cast & Forged Valves
⦁ Double Body Sealing
⦁ Fire Safe Design as per API 607 & API 6FA
⦁ Anti Blow Out Proof Stem
⦁ Anti Static Device
⦁ Bi-Directional Valve
⦁ Locking Arrangement
⦁ ISO 5211 top pad for mounting (for actuated valve)
⦁ Multi Sealing Stem (Tripple Stem Sealing)
⦁ Stem extension as on request
